xSpecifications:
|
Processor
|
Qualcomm Atheros 560MHz CPU, MIPS 24Kc |
|
Memory
|
64MB DDR2 RAM, 8MB Flash |
|
Interface
|

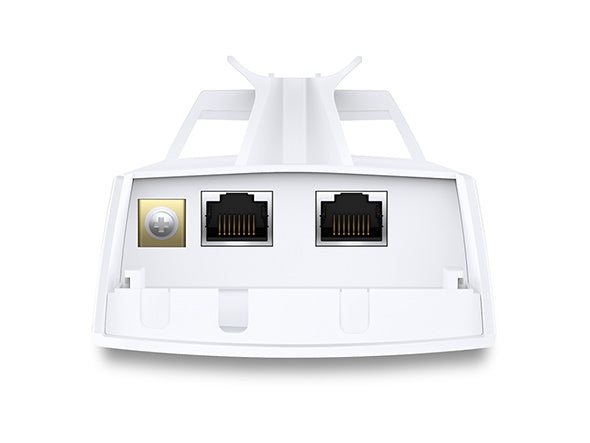

1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) |
|
Power Supply
|
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
|
10.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
|
Dimensions ( W x D x H )
|
11×3.1×2.1 inch (276×79×60 mm) |
|
Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet |
|
Protection
|
15KV ESD Protection |
|
Enclosure
|
Outdoor ASA stabilized plastic material |
|
Wireless Standards
|
IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
|
Proprietary Protocol
|
TDMA Mode (with Pharos MAXtream enabled) |
|
Wireless Speeds
|
Up to 300Mbps (40MHz,Dynamic) |
|
Frequency
|
2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
|
Transmission Power
|
30dBm/1000mw (Adjustable power by 1dBm) |
|
Wireless Configurations
|
Pharos MAXtream TDMA Technology |
|
Management Features
|
Discovery and Remote Management via Pharos Control application |
|
System Tools
|
Discovery and Remote Management via Pharos Control application |
|
System-level Optimizations
|
Optimized IGMP Snooping/Proxy for multicast applications |
|
POE ADAPTER FEATURES
|
Dimensions(W x D x H): 85.8×43.9×31.9 mm Interfaces: 1 AC Jack with Earth Ground, 1 10/100Mbps Shielded Ethernet Port (Power + Data), 1 10/100Mbps Shielded Ethernet Port (Data) Button: Remote Reset Button Power Status LEDs: Green Input: 100-240VAC, 50/60Hz Output: 24VDC, 0.5A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Efficiency: >80% Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
|
Certification
|
CE, FCC, RoHS, IPX5 |
|
Package Content
|
Outdoor Wireless CPE |
|
System Requirements
|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, |
|
Environment
|
Operating Temperature: -40℃~70℃ (-40℉~158℉) |
