xSpecifications:
|
Part Number
|
9C6M4-E2-RXA |
|
Product Family
|
Cable - UTP Cat 6 |
|
Description
|

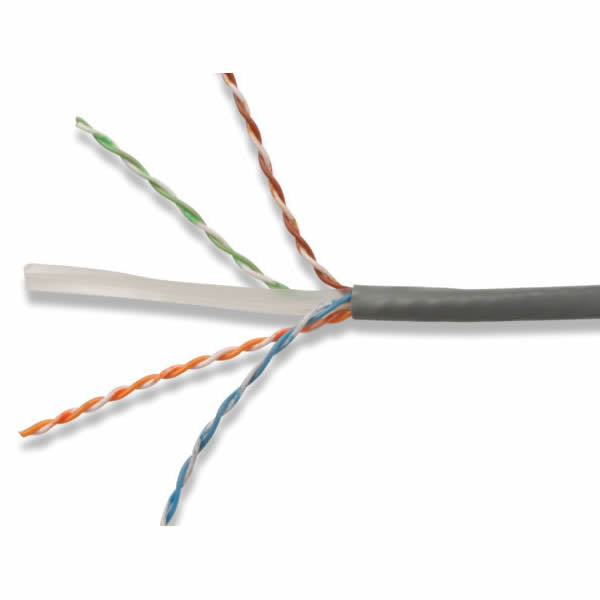

Cable Copper Category 6 E2 4 Pair Solid UTP CM Gray Reelex 305 Meter 24 AWG Class Eca |
|
Product Unit of Measure
|
EA |
|
Product Weight
|
10.7kg (23.59lbs) |
|
Pack 1 Quantity
|
1 |
|
Pack 1 Weight
|
11.9kg (26.13lbs) |
|
Pack 1 Dimensions (L x W x H)
|
389.9mm x 279.9mm x 374.9mm (15.35" x 11.02" x 14.76") |
|
Conductor Type
|
Solid |
|
Cable Length
|
305 Meter
|
|
Cable Construction
|
UTP |
|
# of Pairs
|
4 Pair |
|
Jacket Color
|
Gray |
|
Jacket Type
|
CM |
|
Double Jacket
|
No |
|
Cable OD (mm) (nominal)
|
5.6 |
|
Cable OD (in) (nominal)
|
0.22 |
|
Conductor Insulation OD (mm) (nominal)
|
0.99 |
|
Conductor Insulation OD (in) (nominal)
|
0.039 |
|
Conductor AWG (Nominal)
|
24 AWG |
|
Conductor OD (mm) (nominal)
|
0.5 |
|
Conductor OD (in) (nominal)
|
0.02 |
|
Rip Cord
|
No |
|
Isolation Member
|
Yes |
|
Mylar Tape
|
No |
|
Gel Filled
|
No |
|
Application Environment
|
Indoor |
|
Overall Shield
|
No |
|
Packaging
|
Reelex |
|
Operating Temperature (°C)
|
-10 to 60 |
|
Operating Temperature (°F)
|
-14 to 140 |
|
Installation Temperature (°C)
|
5 to 60 |
|
Installation Temperature (°F)
|
41 to 140 |
|
Storage Temperature (°C)
|
0 to 60 |
|
Storage Temperature (°F)
|
32.0 to 140 |
|
Bend Radius (mm) (min)
|
25.0 |
|
Bend Radius (in) (min)
|
1.0 |
|
Pulling Tension (N) (max)
|
80 |
|
Pulling Tension (lbf) (max)
|
18 |
|
Category
|
Category 6 |
|
Performance Level
|
E2 |
|
MHz
|
250 MHz |
|
DC Resistance @ 20°C (68°F)
|
<9.5Ω/100m |
|
DC Resistance Unbalance Within Pairs
|
≤2% |
|
DC Resistance Unbalance Between Pairs
|
≤5% |
|
Mutual Capacitance
|
≤5.6 nF/100m |
|
Capacitance Unbalanced
|
≤330 pF/100m |
|
NVP
|
0.65 |
|
TCL
|
≥30-10*log(f/100) dB |
|
Delay Skew
|
≤45 ns/100m |
|
Voltage Rating
|
300V |
|
Max Operating Voltage
|
80V |
|
Quality Management System Certification
|
ISO 9001:2015 |
|
RoHS
|
RoHS - Meets Without Exemption |
|
REACH
|
REACH - Does Not Contain SVHCs |
|
Conflict Minerals
|
Conflict Minerals - DRC Conflict Free |
|
PFAS
|
Does not contain PFAS Substances |
