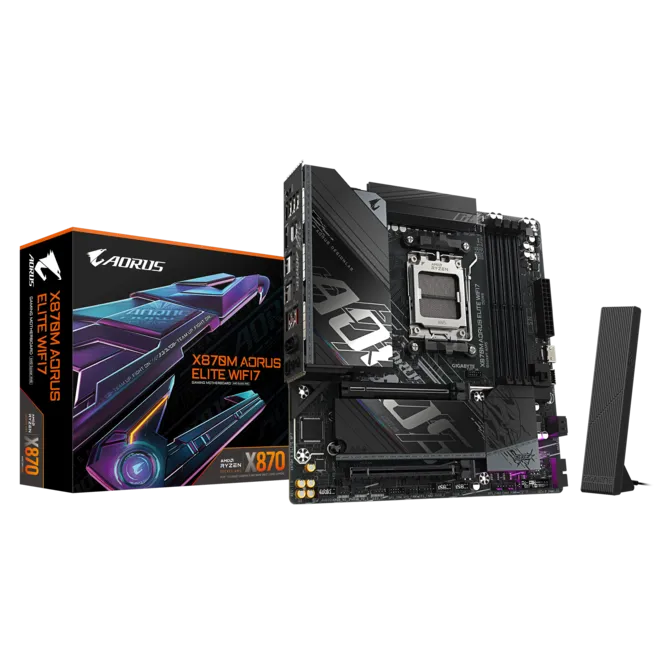

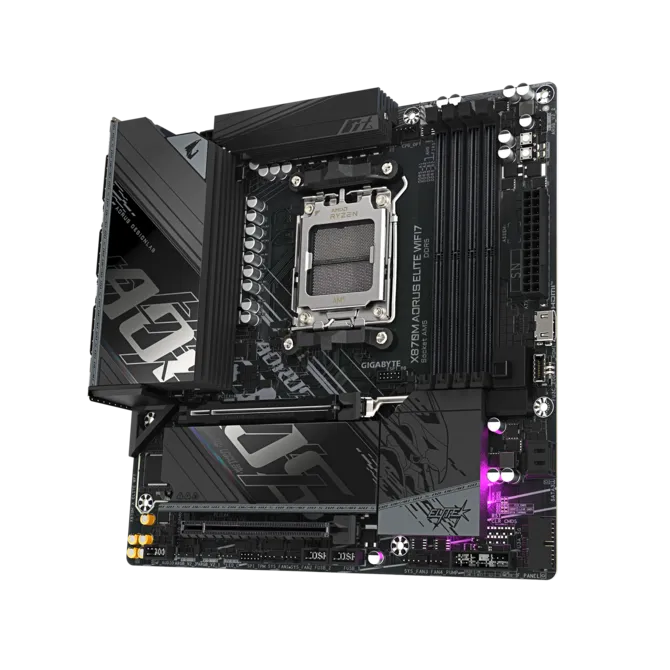

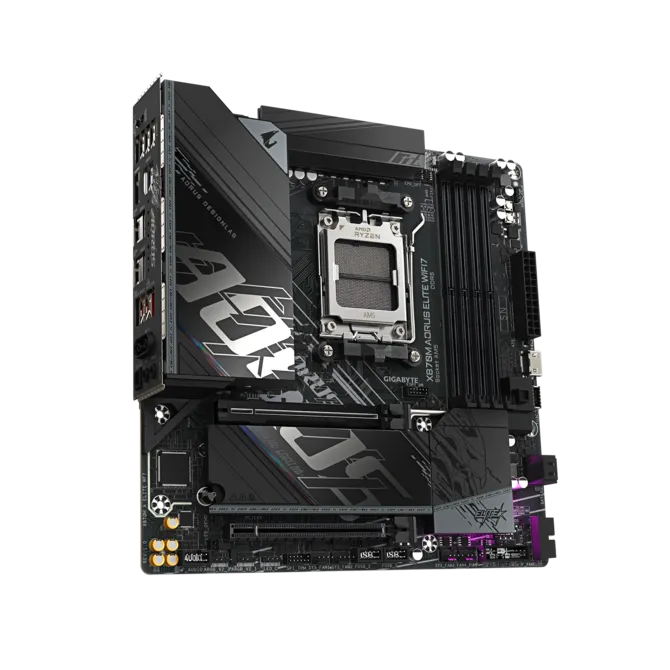

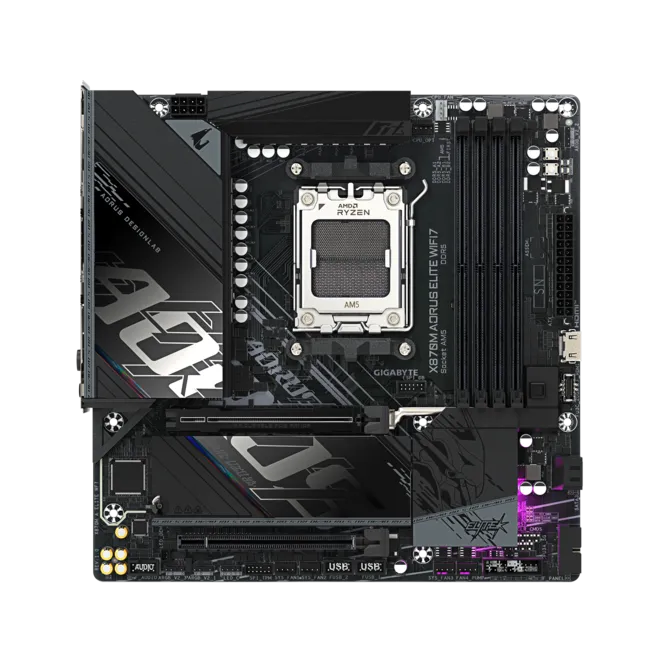

MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD

MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD

SPECIFICATION CPU AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000...
Vendor: Gigabyte
SKU: 889523051726
Availability: Many In Stock
Product type: Motherboard AMD AM5
₱14,500.00
₱14,500.00
Subtotal: ₱14,500.00
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD

MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD

₱14,500.00
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD
MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD

MAINBOARD AM5 GIGABYTE X870M AORUS ELITE WIFI7 AM5 AMD MOTHERBOARD

₱14,500.00
Description
Description
x

SPECIFICATION

CPU

 AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD X870

Memory

 Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.


Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.


- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.


(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


Support for S/PDIF Out

LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

 Realtek® Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
*** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4

Storage Interface

 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.


RAID 0 and RAID 1 support for SATA storage devices

USB

 CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

* Actual support may vary by CPU.

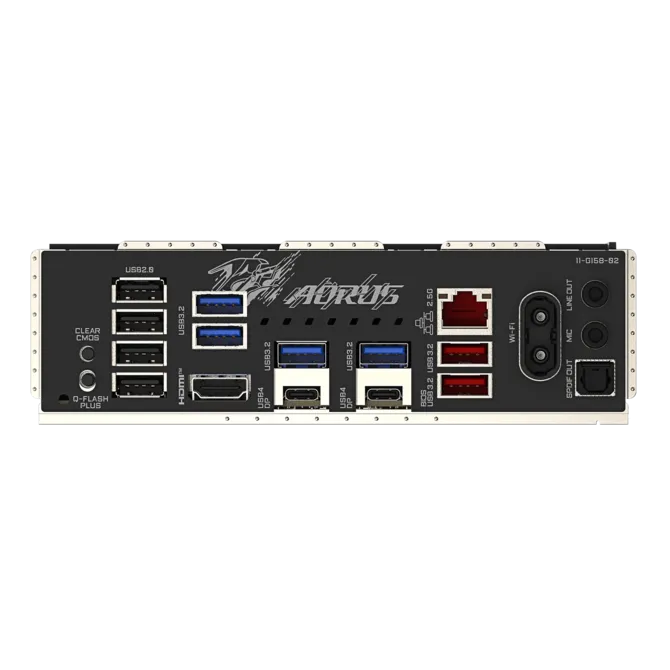

Back Panel Connectors

 1 x Clear CMOS button
1 x Q-Flash Plus button
1 x HDMI port*
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB4® USB Type-C® ports (DisplayPort*)
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

* Actual support may vary by CPU.
I/O Controller

 iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
Operating System

Support for Windows 11 64-bit
Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm



Warranty
Warranty
x

Warranty

All products sold by MF Computer Solutions are covered by our 7-Day Direct Replacement Guarantee for factory defects under normal use. Beyond this period, items are protected by their respective manufacturer or supplier warranty, depending on the brand and product category.

Certain products such as monitors and printers may follow specific manufacturer policies (e.g., pixel standards or print count limits).

For complete details, coverage terms, exclusions, and processing guidelines, please refer to our full Warranty Policy page.

Payment & Availability
Payment & Availability
x

Payment & Availability

All items listed on this website are cash basis and already on sale. Online checkout is currently unavailable — all transactions are for in-store pickup only at MF Computer Solutions. Prices and stock may change without notice. For availability and updated pricing, please contact us through our Facebook Messenger page before visiting.

Accepted Payment Methods

Cash/Debit Card

Cash and debit card payments are same as posted price

Credit Cards

Accepted: BDO, BPI, and Metro Bank (Straight, 3 months, 6 months, 12 months)

Other credit cards: straight payment only

All credit card transactions are subject to card-based pricing adjustments depending on the term.

Credit card payments (straight or installment) have a different computed price compared to cash. This is due to bank processing and installment costs.

Bank Transfer

BDO, BPI, and Metro Bank

Digital Payments

QR PH, GCash

Financing

Homecredit
