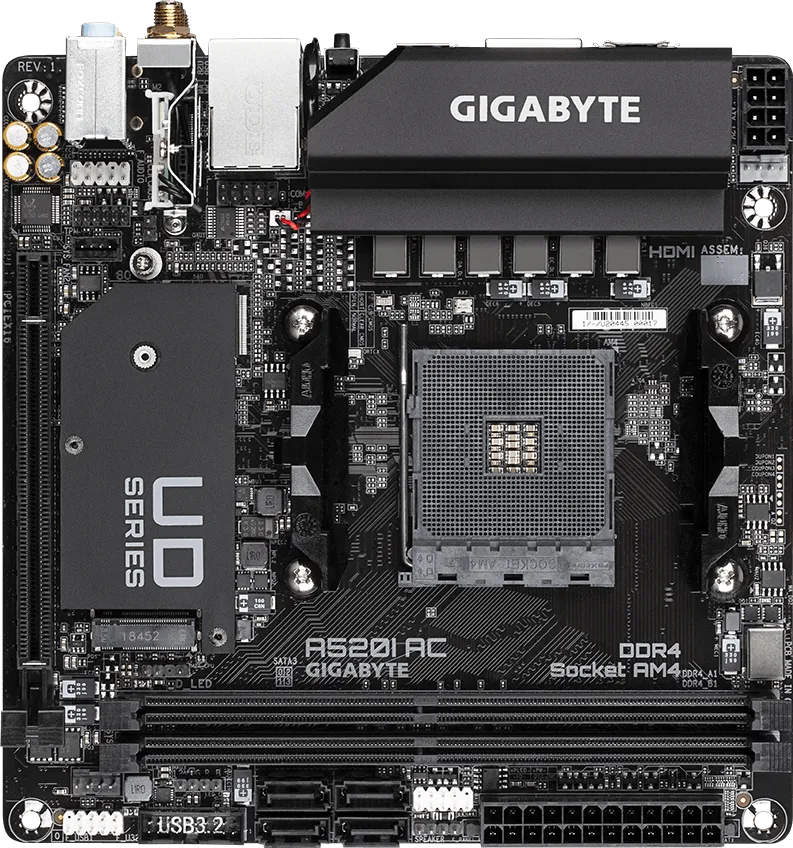

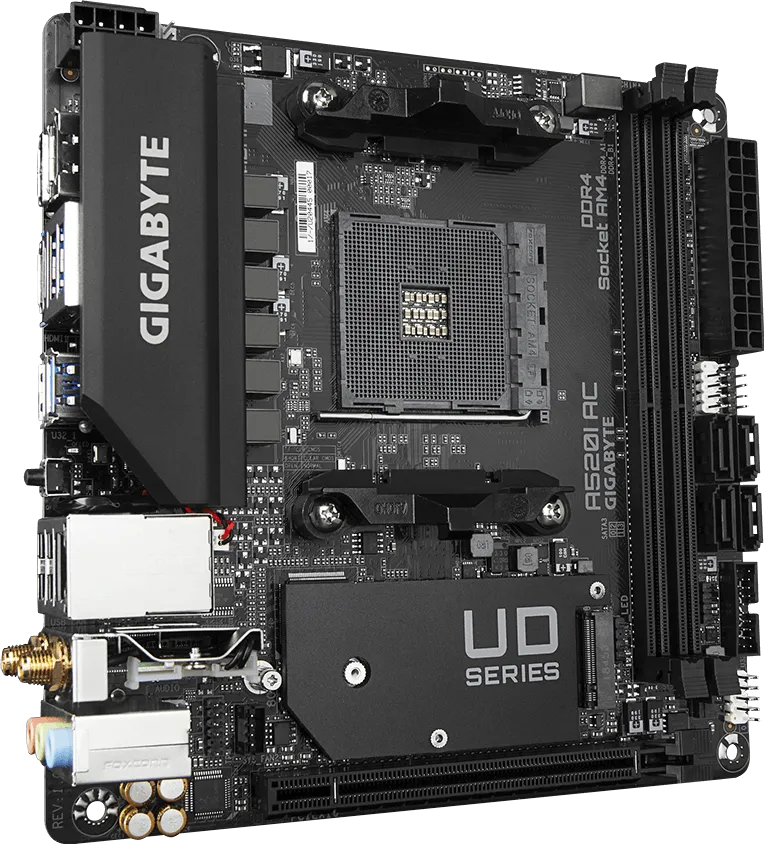

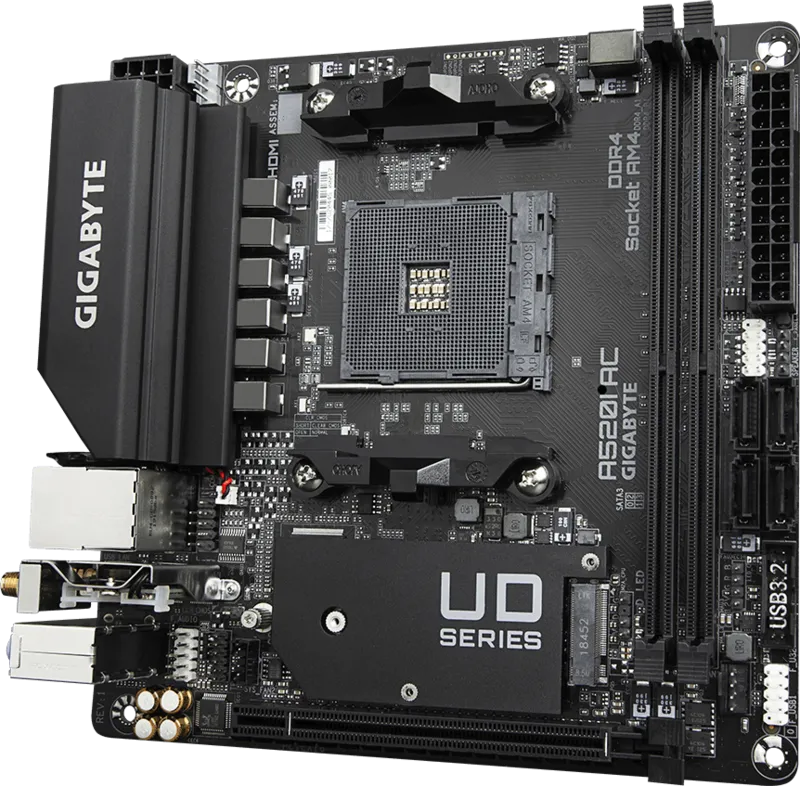

GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD
GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD
GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD
GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD

GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD

SPECIFICATION CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series...
Vendor: Gigabyte
SKU: 889523023785
Availability: Many In Stock
Product type: Motherboard AMD AM4
₱6,250.00
₱6,250.00
Subtotal: ₱6,250.00
GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD

GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD

₱6,250.00
GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD
GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD
GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD
GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD

GIGABYTE A520I AC MINI ITX AM4 AMD MOTHERBOARD

₱6,250.00
Description
Description
x

SPECIFICATION

CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
(Please refer "CPU Support List" for more information.)

Chipset


AMD A520

Memory

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics



Integrated Graphics Processor with AMD Radeon™ Graphics support:
1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB



Audio



Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.



LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module

Intel® Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3)/Intel® Wi-Fi AC 9260 (For PCB rev. 1.1)/ Realtek® Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4)
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard
* Actual data rate may vary depending on environment and equipment.

Expansion Slots

 Integrated in the CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Storage Interface

Integrated in the CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

USB


Integrated in the CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors



1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

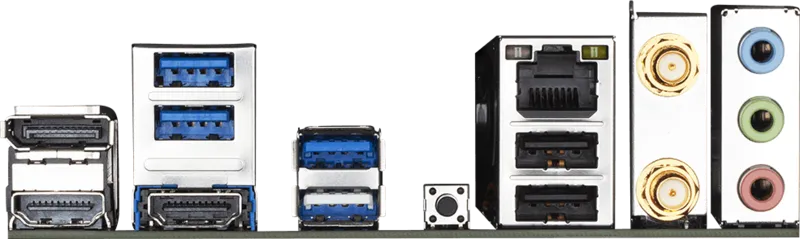

Back Panel Connectors
1 x DisplayPort
2 x HDMI ports
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 ports
2 x SMA antenna connectors (1T1R)
3 x audio jacks
I/O Controller

 iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features



Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash


Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System


Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm
