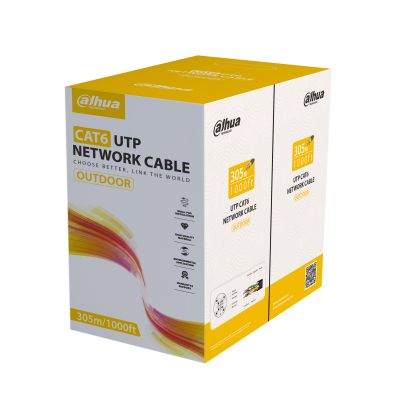

xSpecifications:
|
Conductor
|
Material: Oxygen free copper (99.97% purity) Conductor Structure:0.53 mm ± 0.02 mm (0.02" ± 0.0008") American Wire Gauge: 24AWG |
|
Insulation
|
Material: HDPE Min. Average Thickness: 0.21 mm (0.0083") Diameter: 0.95 mm ± 0.06 mm (0.04" ± 0.0024") Color (4 Pairs): 8 cores, Blue, white/blue; Orange, white/orange; Green, white/green; Brown, white/brown |
|
Separator
|
Material: PE Specification: Translucent 4.3 × 0.35 mm |
|
Rip Cord
|
Material: Polyester Specification: 3 × 150D |
|
Sheath
|
Material: MDPE Min. Average Thickness:0.5 mm (0.02") Diameter: 6.8 mm ± 0.4 mm (0.27" ± 0.02") Color: Black |
|
Electrical
|
Max. DC Resistance of a Single Conductor: 9.5 Ω@100 m (328.08 ft)
Min. Insulation Resistance: 5000MΩ·km
Max. DC Resistance Unbalance: 2% (pair intra), 4% (pairs inter)
Dielectric Strength: No breakdown with 1KV DC for 1 min
|
|
Transmission
|
Characteristic Impedance: 100 ± 15Ω Near End Cross Talk: ≥39.30 dB/100 m@250 MHz Max. Attenuation: 34.8 dB/100 m@250 MHz Return Loss: ≥17.3 dB/100 m@250 MHz |
|
Mechanical
|
Tensile Strength: Sheath≥13.5 MPa, insulation≥16 MPa Elongation at Break: Sheath≥150%, insulation≥300% Installation Bending Radius: >8 times of outer cable diameter Conductor Elongation at Break: ≥10% |
|
Environmental
|
Shrinkage of Insulation: ≤5% Color Migration Resistance of Insulation: No migration Sheath Tensile Strength and Elongation at Break after Aging: ≥12.5 MPa, ≥100% Low Temperature Bending Test: No cracking after the test Heat Shock Test: No cracking after the test Operation Temperature: –20°C to +60°C (–4°F to 140°F) Installation Temperature: 0°C to +50°C (32°F to 122°F) Storage Temperature and Humidity: –10°C to +40°C (14°F to 104°F), <60% (RH) |
|
Security
|
Vertical Fire Propagation Test: Comply with IEC 60332-1-2 |
|
Packaging
|
Cable Length: 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) Packaging Dimensions: 433 mm × 433 mm × 230mm (17.05" × 17.05" ×9.06") (L × W × H) Transport Packaging Method: 495 mm × 457mm × 466mm (19.49" × 17.99" × 18.35") (L × W × H) Net Weight: 13.5 kg ± 0.6 kg (29.76 lb ± 1.32 lb) Gross Weight: 14.5 kg ± 0.6 kg (31.97 lb ± 1.32 lb) |
|
Compliance Standard
|
Q/DXJ 067-2024 |
