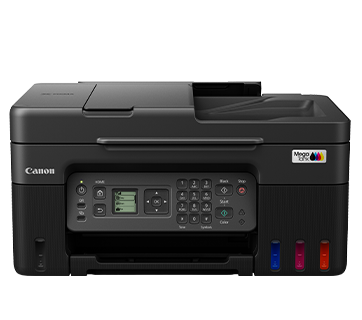

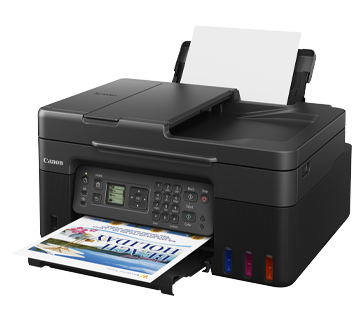

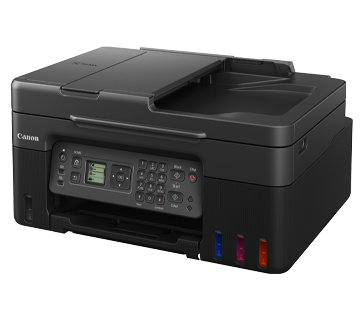

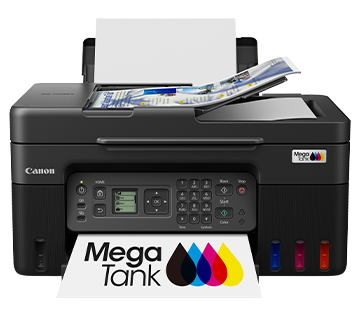

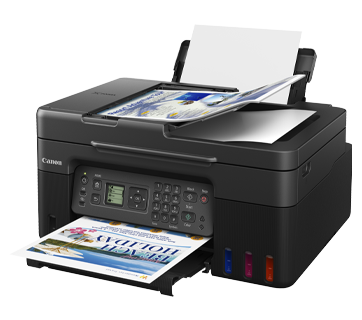

CANON PIXMA G4770 AIO WIFI REFILLABLE INK TANK PRINTER

Print Head / Ink

Number of Nozzles: Total 1,792 nozzles

Ink Bottles (Type/Colours)
GI-71 (Bundled), GI-71S
(Pigment Ink/Black),
(Dye-based Ink/Cyan, Magenta, Yellow)

Maintenance Cartridge: MC-G04

Print Heads: BH-70, CH-70

Maximum Printing Resolution: 4,800 (Horizontal)*1 x 1,200 (Vertical) dpi

Print Speed*2 (Approx.)
Document (ESAT/Simplex)*: 11 / 6 ipm (Mono/Colour)
Document (FPOT Ready/Simplex)*: 9 / 14 sec (Mono/Colour)
Photo (4 x 6") (PP-201/Borderless)*: 45 sec

Printable Width: Up to 203.2 m (8")
Borderless: Up to 216 mm (8.5")

Printable Margin
Borderless Printing: Top/Bottom/Left/Right margin: 0 mm

Bordered Printing
Envelope (COM10, DL):
Top/Bottom margin: 12.7 mm
Left/Right margin: 3.4 mm

Envelop (C5, Monarch):
Top/Bottom margin: 12.7 mm
Left/Right margin: 5.6 mm

B-Oficio, M-Oficio:
Top margin: 3 mm, Bottom margin: 5 mm
Left/Right margin: 6.4 mm

LTR, LGL, Foolscap, F4, Oficio2:
Top margin: 3 mm, Bottom margin: 5 mm
Left margin: 6.3 mm, Right margin: 6.4 mm

Legal (India)
Top margin: 3 mm, Bottom margin: 5 mm
Left/Right margin: 5.9 mm

Square 5 x 5" (127 x 127 mm):
Top/Bottom/Left/Right margin: 6 mm

Square 3.5 x 3.5" (89 x 89 mm): Top/Bottom/Left/Right margin: 5 mm

Custom Size:
Width 55 - 216 mm, Length: 89 - 1,200 mm
Top margin: 3 mm, Bottom margin: 5 mm
Left margin: 3.4 mm, Right margin: 3.4 – 9.4 mm

Others:
Top margin: 3 mm, Bottom margin: 5 mm
Left/Right margin: 3.4 mm

Support Media
Rear Tray
Plain Paper (64 - 105 g/m²)
High Resolution Paper (HR-101N)
Photo Paper Plus Glossy II (PP-201, PP-208)
Photo Paper Plus Semi-Gloss (SG-201)
Photo Paper Pro Luster (LU-101)
Matte Photo Paper (MP-101)
Double-Sided Matte Photo Paper (MP-101D)
Envelope
Photo Stickers (PS-208, PS-808)

Paper Size
Rear Tray
A4, A5, A6, B5, LTR, LGL, Executive, Oficio2,
B-Oficio, M-Oficio, Legal (India), Foolscap, F4,
4 x 6", 5 x 7", 7 x 10", 8 x 10", Envelopes (DL, COM10, C5, Monarch), Square (89 x 89 mm, 127 x 127 mm), Card Size (91 x 55 mm)

[Custom Size]
Width: 55 - 216 mm
Length: 89 - 1,200 mm

Paper Size (Borderless): A4, B5, LTR, 4 x 6", 5 x 7", 7 x 10", 8 x 10", Square (89 x 89 mm, 127 x 127 mm), Card Size (91 x 55 mm)

Paper Handling (Maximum Number)
Rear Tray
[Plain Paper, A4/LTR]
Plain Paper (64 g/m²): 100
High Resolution Paper (HR-101N): 80

[Photo Paper, 4 x 6"]
Photo Paper Plus Glossy II (PP-201): 20
Photo Paper Plus Glossy II (PP-208): 10
Photo Paper Plus Semi-Gloss (SG-201): 20
Matte Photo Paper (MP-101): 20

Paper Weight
Rear Tray
Plain Paper: 64 - 105 g/m²
Canon Paper: Max. 265 g/m²
(Photo Paper Plus Glossy, PP-201)

Ink End Sensor: Dot count type

Print Head Alignment: Auto / Manual

Scanner Type: Flatbed (ADF / Platen)

Scanner Method: Contact Image Sensor (CIS)

Optical Resolution*:600 x 1,200 dpi

Scanning Bit Depth (Input/Output)
Greyscale: 16 bit / 8 bit
Colour: RGB each 16 bit / 8 bit

Line Scanning Speed*9 (Approx.)
Greyscale: 1.5 ms/line (300 dpi)
Colour: 3.5 ms/line (300 dpi)

Maximum Document Size
Flatbed: A4, LTR (216 x 297 mm)
ADF: A4, LTR, LGL

Compatible Media
Size: A4, A5, A6, B5, LTR, Executive (184.2 × 266.7 mm), 4 x 6", 5 x 7", Square (127 x 127 mm), Card Size (91 x 55 mm)

Type
Plain Paper (64 g/m² - 105 g/m²)
Photo Paper Plus Glossy II (PP-201, PP-208)
Photo Paper Plus Semi-Gloss (SG-201)
Photo Paper Pro Luster (LU-101)
Matte Photo Paper (MP-101)

Image Quality: 3 positions (Economy, Standard, High)

Density Adjustment: 9 positions, Auto Intensity (AE copy)

Copy Speed*10 (Approx.)
Document (Colour): (sFCOT/Simplex) / (sESAT/Simplex): 23 sec / 3.2 ipm

Document (ADF): Mono/Colour (ESAT/Simplex): 9.6 / 1.8 ipm

Multiple Copy
Mono/Colour: Max. 99 pages
Maximum Document Size: A4, LTR

Type: Desktop Transceiver (Super G3 / Colour Communication)

Applicable Line: PSTN

Transmission Speed* (Approx.)
Mono / Colour: 3 sec / 1 min

Fax Resolution (Approx.)
Mono
8 pels/mm x 3.85 lines/mm (Standard)
8 pels/mm x 7.7 lines/mm (Fine)
300 x 300 dpi (Extra Fine)
Colour: 200 × 200 dpi

Print Size: A4, LTR, LGL

Scanning Width: A4 / LTR

Modem Speed: Max. 33.6 kbps (Automatic fall back)

Compression
Mono: MH, MR, MMR
Colour: JPEG

Gradation
Mono: 256 levels
Colour: 24 bit (RGB each 8 bit)

ECM (Error Correction Mode): Available.

Automatic Dialing
Coded Speed Dialing (Max.): 20 locations
Group Dialing (Max.): 19 locations

Transmission/Reception Memory*12 (Approx.): 50 pages

Type: Windows: Available, Mac: Available

Destination Number: 1 Location

Mono / Colour: B/W Transmission only

Protocol: SNMP, HTTP, TCP / IP (IPv4/IPv6)

Wireless LAN
Network Type
IEEE 802.11b/g/n
2.4 GHz, Supported Channels: 1 - 13
(TW: Supported Channels: 1 - 11 only)*13

Security
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
WPA3-SAE (AES)

Direct Connection (Wireless LAN): Available

AirPrint®: Available

Mopria® Print Service: Available

Canon Print Service
(for Android): Available

Cloud Integration Service
(from smartphone/tablet): Available

Canon PRINT
(for iOS/Android): Available

Camera Direct: Wireless LAN

Windows 11 / 10 / 8.1 / 7 SP1
(operation can only be guaranteed on a PC with a pre-installed Windows 7 or later),

macOS 10.14.6 – 12 or later,

ChromeOS

Display: 1.35" / 3.4 cm Square LCD (Monochrome)

ADF
Paper Handling (Plain Paper): A4, LTR: 35, LGL: 5, Others: 1
Interface: USB 2.0

Operating Environment
Temperature: 5 - 35°C
Humidity: 10 - 90% RH (no dew condensation)

Recommended Environment
Temperature: 15 - 30°C
Humidity: 10 - 80% RH (no dew condensation)

Storage Environment
Temperature: 0 - 40°C
Humidity: 5 - 95% RH (no dew condensation)

Quiet Mode: Available

Acoustic Noise (PC Print)*17 (Approx.)
Plain Paper (A4, Mono): 48.0 dB(A)
Power: AC 100 - 240 V, 50/60 Hz

Power Consumption (Approx.)
OFF: 0.1 W
Standby (USB connection to PC,
scanning lamp is turned off): 0.6 W

Copying*
(USB connection to PC): 15 W

Duty Cycle: Up to 3,000 pages/month

Dimensions (WxDxH) (Approx.)
Factory Configuration: 416 x 337 x 212 mm
Output/ADF Trays Extended: 416 x 556 x 268 mm

Weight (Approx.): 7.2 kg

 A4 Colour Documents*20:
GI-71 PGBK: 6,000 pages (Economy Mode*21 7,600 pages)
GI-71 C, M, Y: 7,700 pages (Economy Mode*21 8,100 pages)

GI-71S PGBK: 3,100 pages (Economy Mode*21 3,900 pages)
GI-71S C, M, Y: 4,400 pages (Economy Mode*21 4,600 pages)

Photo Paper (PP-201)
4 x 6" Photos*22:
GI-71 PGBK: NA
GI-71 C, M, Y: 2,200 sheets

GI-71S PGBK: NA
GI-71S C, M, Y: 1,200 sheets
