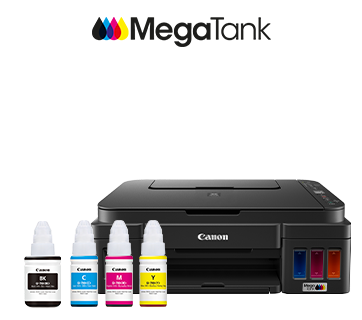

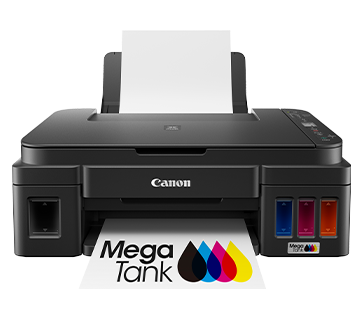

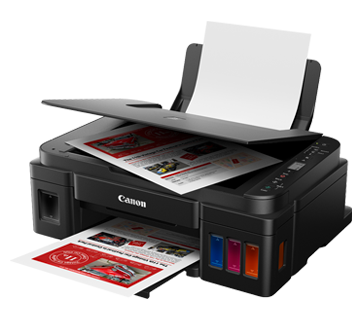

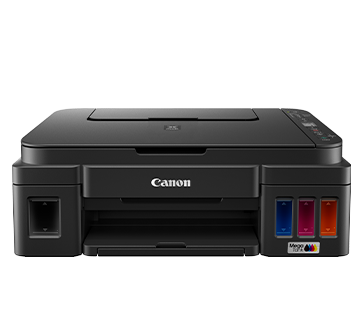

CANON PIXMA G3010 AIO WITH WIFI REFILLABLE INK TANK PRINTER

Document (ESAT/Simplex)*: 8.8 / 5 ipm (Mono/Colour)

Document (FPOT Ready/Simplex)*: 11 / 17 sec (Mono/Colour)

Photo (4 x 6") (PP-201/Borderless)*: 60 sec

Print Width
Bordered: Up to 203.2 mm (8")
Borderless: Up to 216 mm (8.5")

Recommended Printing Area
Top margin: 31.2 mm
Bottom margin: 32.5 mm

Scanner Type: Flatbed (Platen)

Scanner Technology: Contact Image Sensor (CIS)

Optical Resolution*: 600 x 1,200 dpi

Scanning Bit Depth (Input/Output)
Greyscale: 16 bit / 8 bit
Colour: 48 bit / 24 bit (RGB each 16 bit / 8 bit)

Maximum Document Size
Flatbed: A4, LTR (216 x 297 mm)

Document (Colour):
(sFCOT/Simplex / sESAT/Simplex : 24 sec / 3.5 ipm

Maximum Copies: 20 pages

Maximum Document Size: A4, LTR

Borderless Printing: Top/Bottom/Left/Right margin: 0 mm

Bordered Printing:
LTR, LGL:
Top margin: 3 mm, Bottom margin: 5 mm
Left margin: 6.4 mm, Right margin: 6.3 mm

Others:
Top margin: 3 mm, Bottom margin: 5 mm
Left/Right margin: 3.4 mm

Supported Media
Rear Tray
Plain Paper (64 - 105 g/m²)
High Resolution Paper (HR-101N)
Photo Paper Plus Glossy II (PP-201, PP-208)
Photo Paper Plus Semi-Gloss (SG-201)
Matte Photo Paper (MP-101)
Envelope

Paper Size
Rear Tray
A4, A5, B5, LTR, LGL, Envelope (COM10, DL), 4 x 6", 5 x 7", 8 x 10", Square (127 x 127 mm), Business Card
[Custom Size]
Width: 55 - 215.9 mm
Length: 89 - 676 mm
Borderless Printing: A4, Letter, 4 x 6", 5 x 7", 8 x 10", Square (127 x 127mm), Business Card

Maximum Capacity
Rear Tray
Plain Paper (A4, A5, B5, LTR, 64 g/m²): 100
High Resolution Paper (HR,101N): 80
Photo Paper Plus Glossy II (PP-201, PP-208, 4 x 6"): 20
Photo Paper Plus Semi-Gloss (SG-201, 4 x 6"): 10
Matte Photo Paper (MP-101, 4 x 6"): 20
Envelope (COM10, DL): 10

Paper Weight
Rear Tray
Plain Paper: 64 - 105 g/m²
Canon Paper: Approx. 275 g/m² (Max.)
(Photo Paper Plus Glossy II, PP-201)

Protocol: TCP/IP

Wireless LAN
Type
IEEE802.11b/g/n
2.4 GHz, Supported Channels: 1 - 13
(TW/HK: Supported Channels: 1 - 11 only)

Security
WEP 64/128 bit
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)

Direct Connection (Wireless LAN): Available (AP Mode only)

Mobile
Canon PRINT, Easy-PhotoPrint Editor

Others: PosterArtist Lite, PosterArtist (Web)

Mobile/Cloud Printing Solutions: Mopria® Print Service, Cloud Integration Service (via smartphone/tablet)

Operation Panel
Display: 1.2" LCD Segment Mono

Interface: USB 2.0

Operating Environment
Temperature: 5 - 35°C
Humidity: 10 - 90% RH (no dew condensation)

Recommended Environment
Temperature: 15 - 30°C
Humidity: 10 - 80% RH (no dew condensation)

Storage Environment
Temperature: 0 - 40°C

Humidity: 5 - 95% RH (no dew condensation)

Quiet Mode: Available

Acoustic Noise
Plain Paper (A4, Mono): 53.5 dB(A)

Power Requirements: AC 100 - 240 V, 50/60 Hz

Power Consumption (Approx.)
OFF: 0.2 W
Standby: 1.2 W
Operation*: 11 W

Dimensions (W x D x H)
Factory Configuration: 445 x 330 x 163 mm Output Trays Extended: 445 x 533 x 260 mm

Weight: 6.3 kg

Plain Paper
A4 Colour Documents^*16:
GI-790 PGBK: 6,000 pages
GI-790 C, M, Y: 7,000 pages

Photo Paper (PP-201)
4 x 6" Photos:
GI-790 PGBK: NA*17
GI-790 C, M, Y: 2,000 sheets
