xSpecifications:

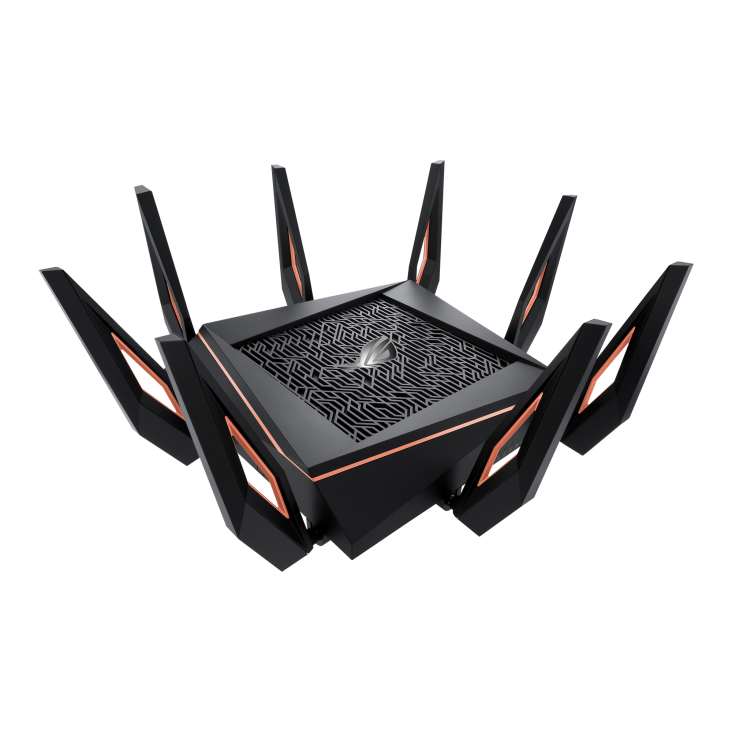

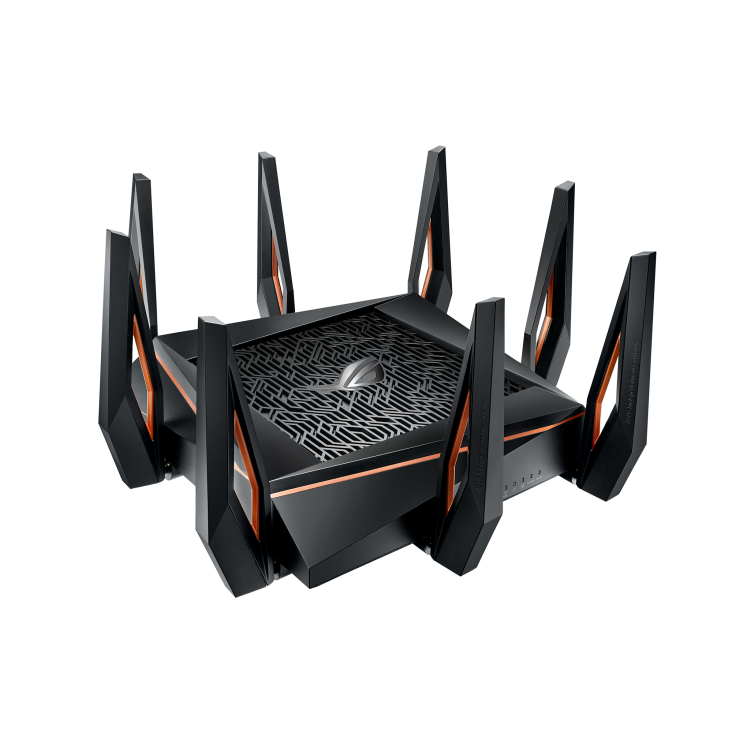

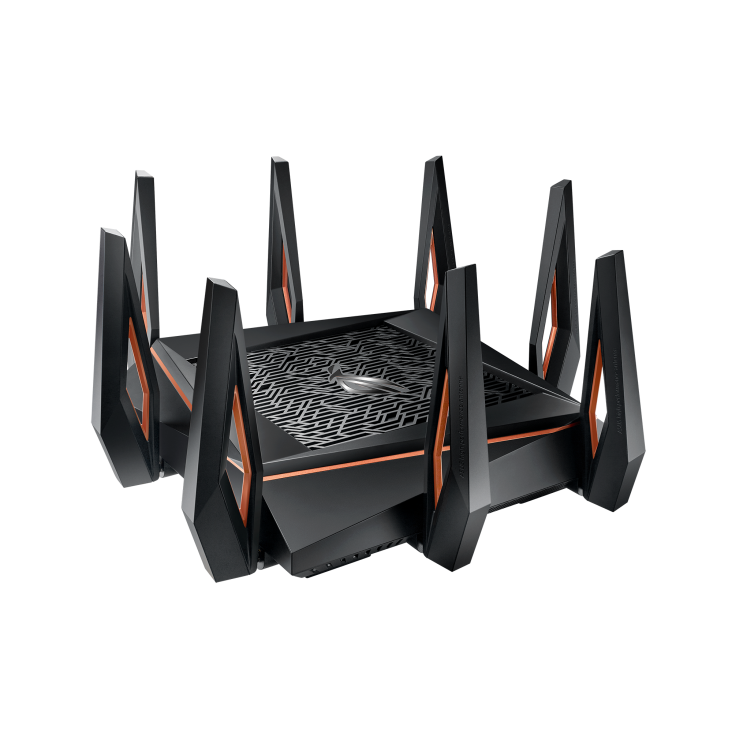

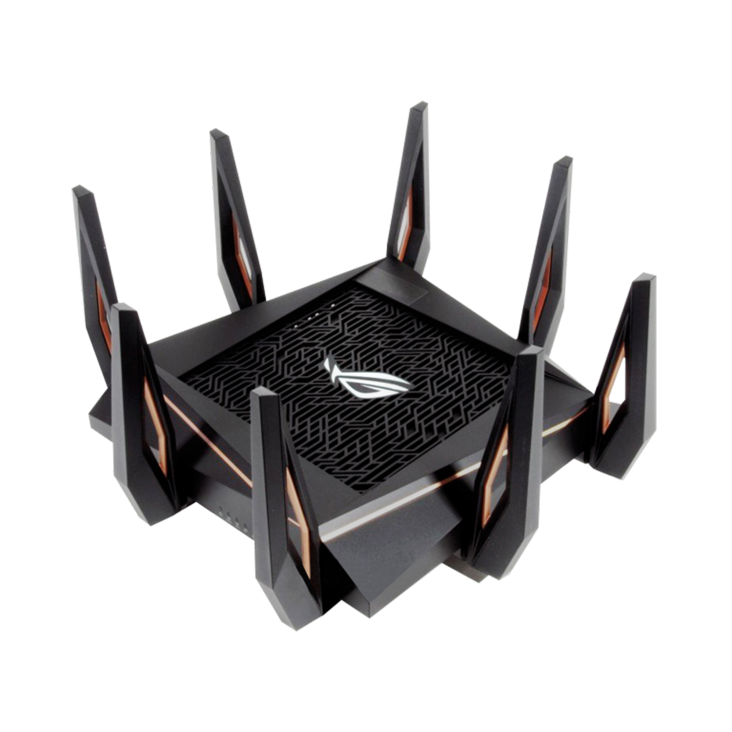

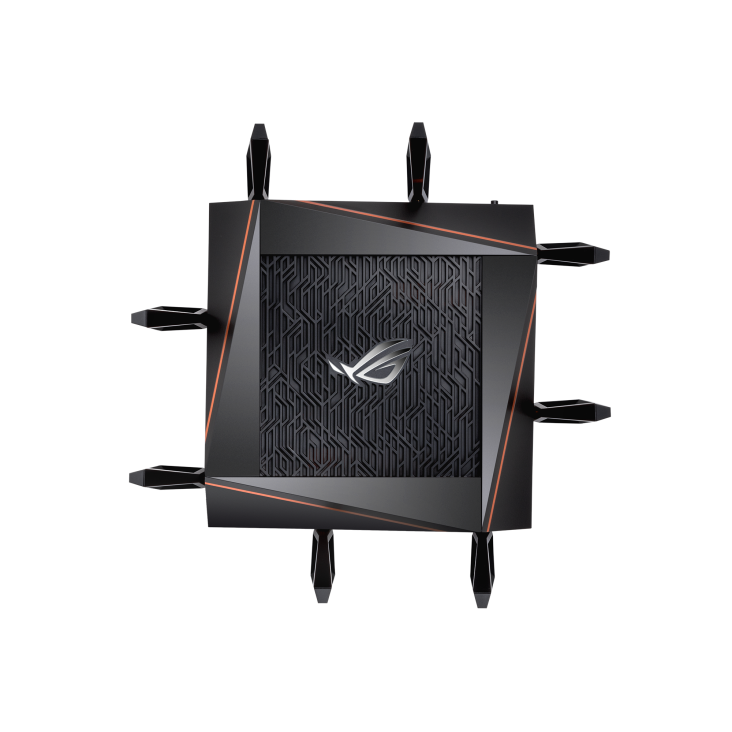

| Model | ROG Rapture GT-AX11000 |
| Network Standard |
WiFi 6 (802.11ax)
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
|
| Product Segment |
AX11000 ultimate AX performance |
| WiFi Data Rate |
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
|
| Antenna | External antenna x 8 |
| Transmit / Receive |
2.4GHz 4x4, 5GHz-1 4x4, 5GHz-2 4x4
|
| Processor | 1.8GHz quad-core processor |
| Memory | 256MB NAND flash and 1GB DDR3 SDRAM |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. |
| Operating Frequency | Tri-band Wi-Fi |
| Operating Mode | Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge |

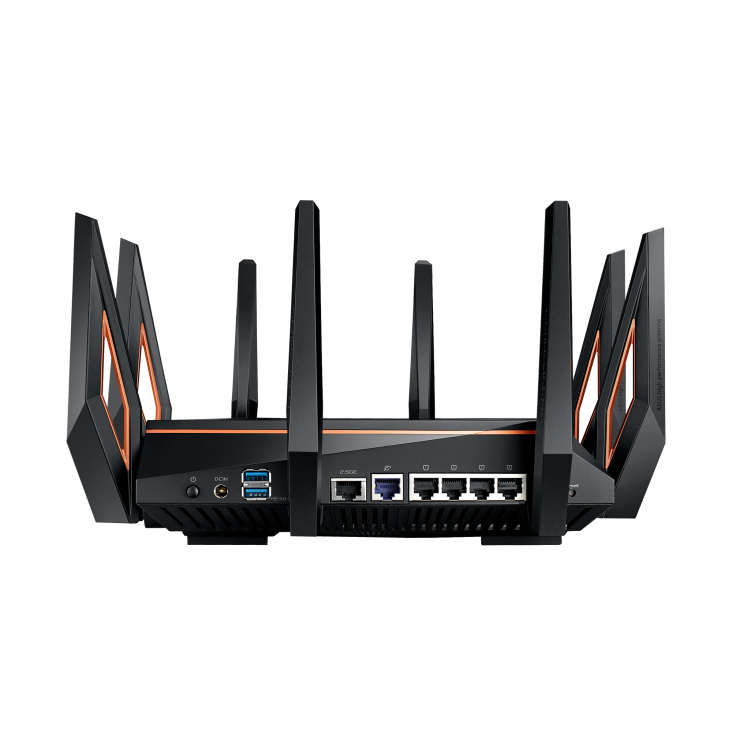

| I/O Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, Multi-Gig Ethernet port 2.5G/1G x1 USB 3.1 Gen 1 x 2 |

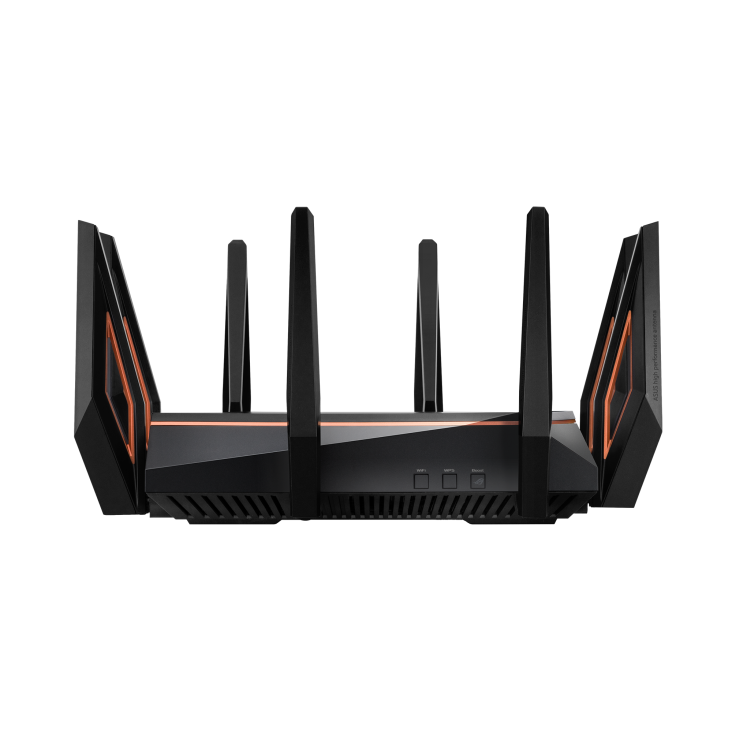

| Buttons | WPS Button, Reset Button, Power Button, Wireless on/off Button, Boost Key |

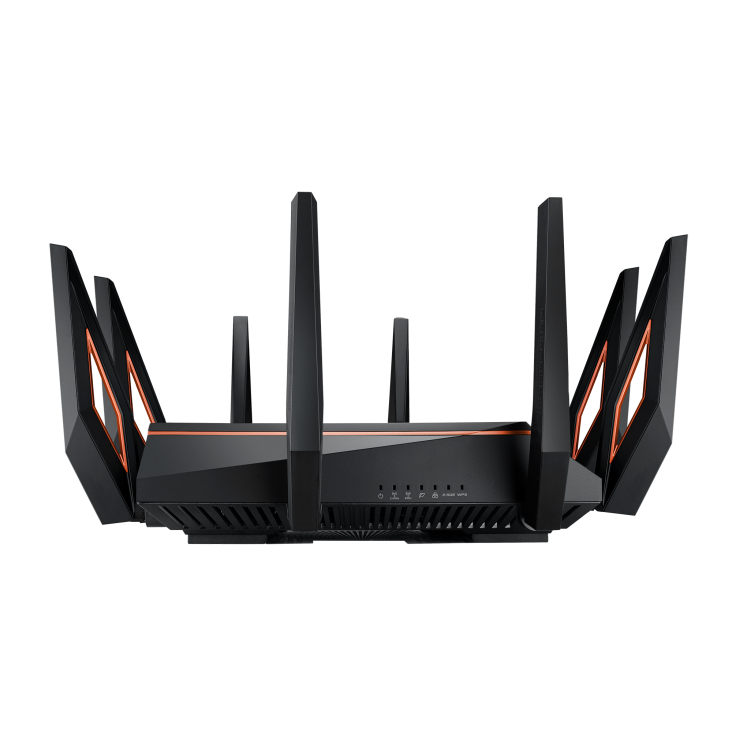

| LED Indicator | Power x 1, Wi-Fi x 2, WAN x 1, LAN x 1, USB x 2, WPS x 1, 2.5G Port x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current |
| Package Content |
GT-AX11000 Extreme Gaming Router, RJ-45 Cable, Power Adapter, Quick Start Guide, Warranty Card |
| Product Weight | 1500 g |
| Product Dimensions | 240*240*70 mm |
| AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
| Game |
Game Boost / Acceleration, Game Radar, WTFast, ROG_First,
OpenNAT (Game Profile), Gaming Port
|
| Parental Control |
"Allow you to block access to unwanted websites and apps."
Parental Control Customized Internet Schedule
• Maximum Parental Control Profile : 16
• Maximum Parental Control Content Filter Rule : 16
|
| Guest Network |
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz-1 x3, 5GHz2 x3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2-Personal
|
| Security |
WiFi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
SSH
Firewall
• Maximum Firewall Keyword Filter : 32
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
|
| AiProtection |
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
|
| VPN |
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Fusion
|
| Traffic Control |
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
|
| Wireless |
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Wi-Fi Radar
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
|
| WAN |
Internet Connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
|
| LAN |
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
|
| USB Application |
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
|
| User Interface |
Operating system : ASUSWRT
|
| Administration |
Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log
|
| Smart Home |
Support IFTTT
|
