xSPECIFICATION
| Name |

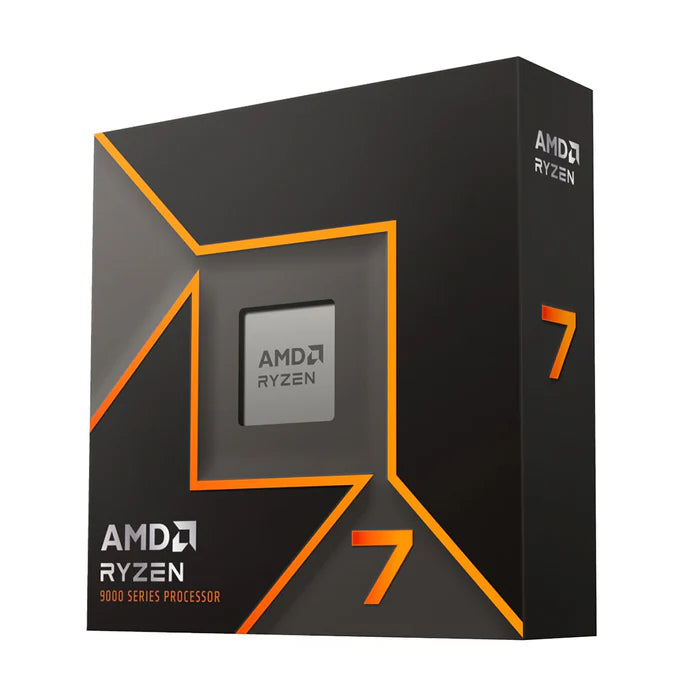

AMD Ryzen™ 7 9700X
|
|
Family |
Ryzen |
|
Series |
Ryzen 9000 Series |
|
Form Factor |
Desktops, Boxed Processor |
|
Market Segment |
Enthusiast Desktop |
|
AMD PRO Technologies |
No |
|
Regional Availability |
Global |
|
Former Codename |
Granite Ridge AM5 |
|
Processor Architecture |
Zen 5 |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
|
# of Threads |
16 |
|
Max. Boost Clock |
Up to 5.5 GHz |
|
Base Clock |
3.8 GHz |
|
L1 Cache |
640 KB |
|
L2 Cache |
8 MB
|
|
L3 Cache |
32 MB |
|
Default TDP |
65W |
|
Processor Technology for CPU Cores |
TSMC 4nm FinFET |
|
Processor Technology for I/O Die |
TSMC 6nm FinFET |
|
Package Die Count |
2 |
|
Unlocked for Overclocking |
Yes |
|
AMD EXPO™ Memory Overclocking Technology |
Yes |
|
Precision Boost Overdrive |
Yes |
|
Curve Optimizer Voltage Offsets |
Yes |
|
AMD Ryzen™ Master Support |
Yes |
|
CPU Socket |
AM5 |
|
Supporting Chipsets |
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
|
CPU Boost Technology |
Precision Boost 2 |
|
Instruction Set |
x86-64 |
|
Supported Extensions |
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
|
Thermal Solution (PIB) |
Not Included |
|
Recommended Cooler |
Premium air cooler recommended for optimal performance |
|
95°C |
|
Launch Date |
08/08/2023 |
|
*OS Support |
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
|
Native USB 3.2 Gen 2 (10Gbps) |
4 |
|
Native USB 2.0 (480Mbps) |
1 |
|
PCI Express® Version |
PCIe® 5.0 |
|
Native PCIe® Lanes (Total/Usable) |
28 , 24 |
|
Additional Usable PCIe Lanes from Motherboard |
X870E: 8x Gen4
X870: 4x Gen4
X670E: 12x Gen4
X670: 12x Gen4
B650E: 8x Gen4
B650: 8x Gen4
|
|
NVMe Support |
Boot , RAID0 , RAID1 , RAID10
|
|
System Memory Type |
DDR5 |
|
Memory Channels |
2
|
|
Max. Memory |
192 GB
|
|
System Memory Subtype |
UDIMM
|
|
Max Memory Speed |
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
|
|
ECC Support |
Yes (Requires mobo support)
|
|
Graphics Model |
AMD Radeon™ Graphics
|
|
Graphics Core Count |
2
|
|
Graphics Frequency |
2200 MHz
|
|
USB Type-C® DisplayPort™ Alternate Mode |
Yes
|
|
Product ID Boxed |
100-100001404WOF
|
|
Product ID Tray |
100-000001404 |
|
Supported Technologies |
AMD EXPO™ Technology , AMD Ryzen™ Technologies |
