xSPECIFICATION
| Name |

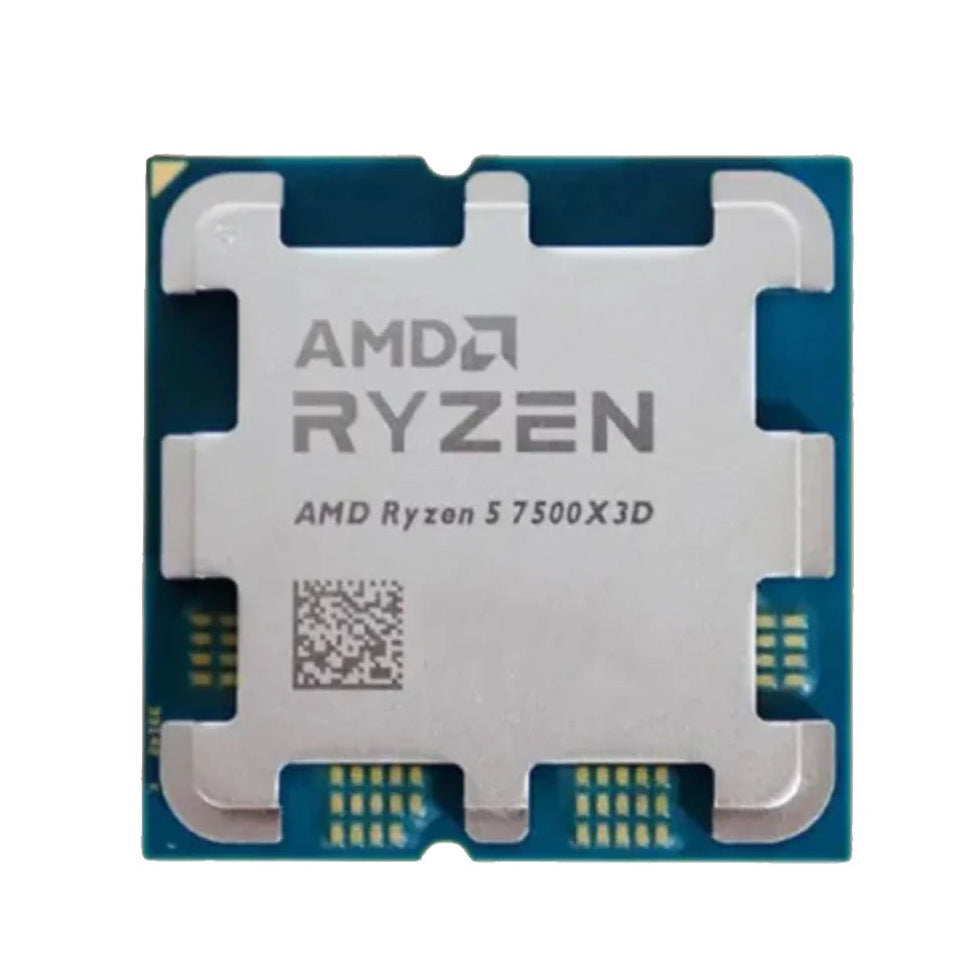

AMD Ryzen™ 5 7500X3D
|
|
Family |
Ryzen |
|
Series |
Ryzen 7000 Series |
|
Form Factor |
Desktops |
|
Market Segment |
Enthusiast Desktop |
|
AMD PRO Technologies |
No |
|
Regional Availability |
Global |
|
Former Codename |
Raphael AM5 |
|
Processor Architecture |
Zen 4 |
| # of CPU Cores | 6 |
|
Multithreading (SMT) |
Yes |
|
# of Threads |
12 |
|
Max. Boost Clock |
Up to 4.5 GHz |
|
Base Clock |
4 GHz |
| L1 Cache | 384 KB |
|
L2 Cache |
6 MB
|
|
L3 Cache |
96 MB |
|
Default TDP |
65W |
|
Processor Technology for CPU Cores |
TSMC 5nm FinFET |
| Processor Technology for I/O Die |
TSMC 6nm FinFET |
|
CPU Compute Die (CCD) Size |
71mm² |
|
I/O Die (IOD) Size |
122mm² |
|
Package Die Count |
2 |
|
Unlocked for Overclocking |
Yes |
|
AMD EXPO™ Memory Overclocking Technology |
Yes |
|
Precision Boost Overdrive |
Yes |
|
Curve Optimizer Voltage Offsets |
Yes |
|
AMD Ryzen™ Master Support |
Yes |
|
CPU Socket |
AM5 |
|
Supporting Chipsets |
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
|
CPU Boost Technology |
Precision Boost 2 |
|
Instruction Set |
x86-64 |
|
Supported Extensions |
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
|
Thermal Solution (PIB) |
Not Included |
| Recommended Cooler |
Liquid cooler recommended for optimal performance |
|
89°C |
|
Launch Date |
11/12/2025 |
|
*OS Support |
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
|
Native USB 3.2 Gen 2 (10Gbps) |
4 |
|
Native USB 3.2 Gen 1 (5Gbps) |
0 |
|
Native USB 2.0 (480Mbps) |
1 |
|
Native SATA Ports |
0 |
|
PCI Express® Version |
PCIe® 5.0 |
|
Native PCIe® Lanes (Total/Usable) |
28 , 24 |
|
Additional Usable PCIe Lanes from Motherboard |
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
A620 4x Gen3
|
|
NVMe Support |
Boot , RAID0 , RAID1 , RAID10 |
|
System Memory Type |
DDR5 |
|
Memory Channels |
2
|
|
Max. Memory |
128 GB |
|
System Memory Subtype |
UDIMM |
|
Max Memory Speed |
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600
|
|
ECC Support |
Yes (Requires mobo support)
|
|
Graphics Model |
Discrete Graphics Card Required
|
|
Product ID Tray |
100-000001904 |
|
Supported Technologies |
AMD EXPO™ Technology , AMD Ryzen™ Technologies |
