AMD RYZEN 5 3400G PROCESSOR - TRAY

Family

Ryzen

Series

Ryzen 3000 Series

Form Factor

Desktops, Boxed Processor

Market Segment

Mainstream Desktop

AMD PRO Technologies

No

Regional Availability

Global , China , NA , EMEA , APJ , LATAM

Former Codename

Picasso

Processor Architecture

Zen+

# of CPU Cores

4

Multithreading (SMT)

# of Threads

8

Max. Boost Clock

Up to 4.2 GHz

Base Clock

L1 Cache

L2 Cache

2 MB

L3 Cache

4 MB

Default TDP

65W

AMD Configurable TDP (cTDP)

45-65W

Processor Technology for CPU Cores

12nm FinFET

CPU Compute Die (CCD) Size

210mm²

Package Die Count

1

Total Transistor Count

4.94 Billion

Unlocked for Overclocking

Yes

CPU Socket

AM4

Supporting Chipsets

X570 , X470 , X370 , B450 , B350 , A320

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

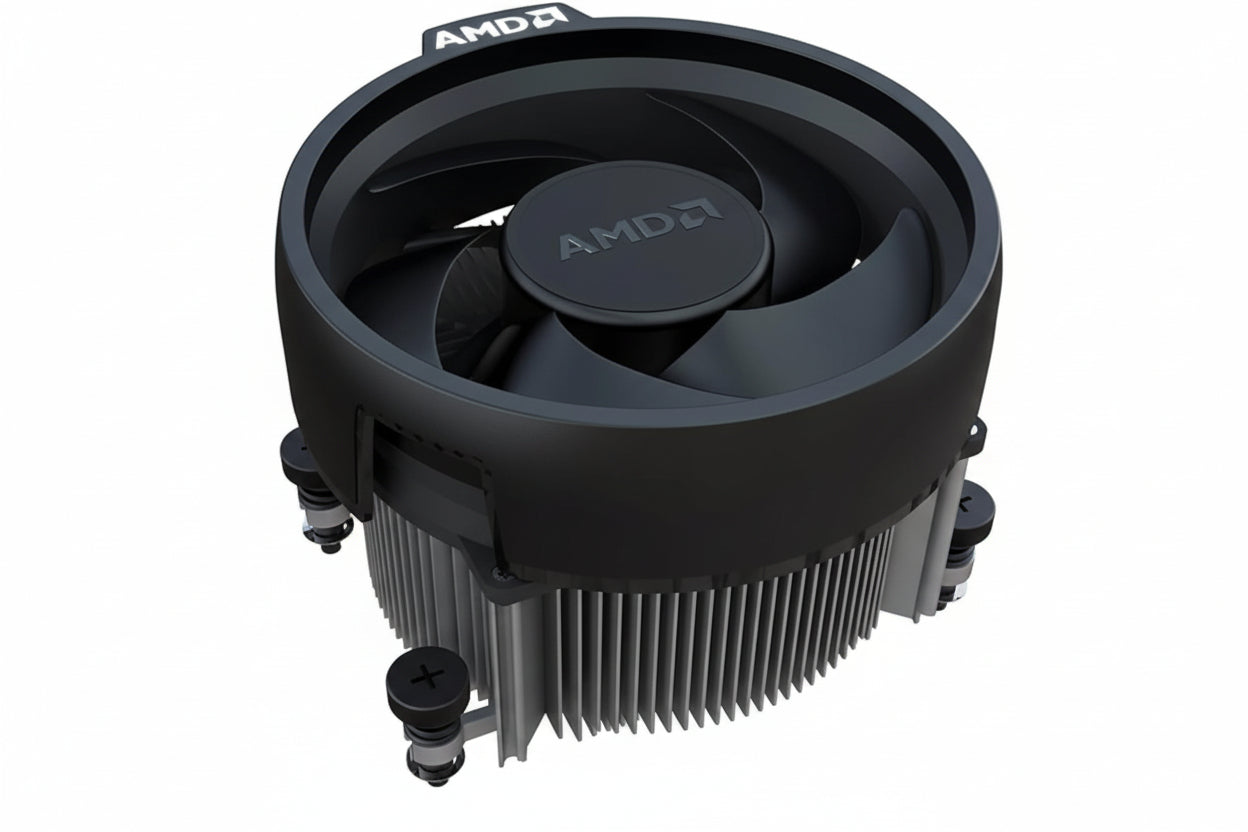

Thermal Solution (PIB)

AMD Wraith Spire

Thermal Solution (MPK)

AMD Wraith Spire

Max. Operating Temperature (Tjmax)

95°C

Launch Date

07/07/2019

*OS Support

Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Native USB 3.2 Gen 2 (10Gbps)

0

Native USB 3.2 Gen 1 (5Gbps)

4

Native USB 2.0 (480Mbps)

0

Native SATA Ports

0

PCI Express® Version

PCIe® 3.0

Native PCIe® Lanes (Total/Usable)

20 , 16

Additional Usable PCIe Lanes from Motherboard

NVMe Support

Boot , RAID0 , RAID1 , RAID10

System Memory Type

DDR4

Memory Channels

2

Max. Memory

64 GB

System Memory Subtype

UDIMM

Max Memory Speed

ECC Support

Yes (Requires mobo support)

Graphics Model

Radeon™ RX Vega 11 Graphics

Graphics Core Count

11

Total Graphics Shaders

704

Graphics Frequency

1400 MHz

GPU Max. Memory

2 GB

WDDM Version

2.7

DirectX® Version

12

OpenGL®

4.6

OpenCL™

2.2

DisplayPort™ Version

1.4a

DisplayPort Extensions

Adaptive-Sync , HBR3 , HDR Metadata

DisplayPort Max Refresh Rates (SDR)

3840x2160 @ 60Hz , 3440x1440 @ 144Hz , 2560x1440 @ 180Hz , 1920x1080 @ 240Hz

DisplayPort Max Refresh Rates (HDR)

3840x2160 @ 60Hz , 3440x1440 @ 60Hz , 2560x1440 @ 60Hz , 1920x1080 @ 120Hz

HDMI® Version

2.0

HDCP Version Supported

2.2

USB Type-C® DisplayPort™ Alternate Mode

Yes

Multi-Monitor Support

Yes

Max Displays

3

AMD FreeSync™

Yes

AMD Eyefinity Single Large Surface (SLS)

No

Wireless Display

Miracast

Max Video Encode Bandwidth (SDR)

1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265

Max Video Decode Bandwidth

1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc

Product ID Boxed

YD3400C5FHSBX*

Product ID Tray

YD3400C5M4MFH

Product ID MPK

YD3400C5FHSPK*

AMD Enhanced Virus Protection (NX bit)

Yes
